Sine-Wave Filters

    All Mode: Differential- and Common-Mode in one. Sroll down to find out how.

    • Power: 1.5 kW to 450 kW
    • Fundamental Frequency: up to 150Hz
    • no Derating
    • Switching Frequency: > 2kHz
    • Temperature Class: H (180°C) acc. to DIN EN 60085
    • Protection Class: IP00 to IP66 acc. to DIN EN 60529
    • Fire Protection: HL3 nach DIN EN 45545
    • Cooling Methods:
      Free Convection
      Forced Air Cooling
      Water Cooling
    • 3GHz Effectiveness
    • no Derating
    • modular

    All Mode (AM)

    Differential- & Common-Mode.

    • AM = DM + CM
    • effective for DM- & CM-disturbances
    • Reduction of components by 50%
    • Maximum dynamic
    • Minimum losses



    Please Note:

    In a 3 phase system the inductance value of an AM-choke is half the value of a 3 column DM-choke:

    • LAM = LDM ÷2

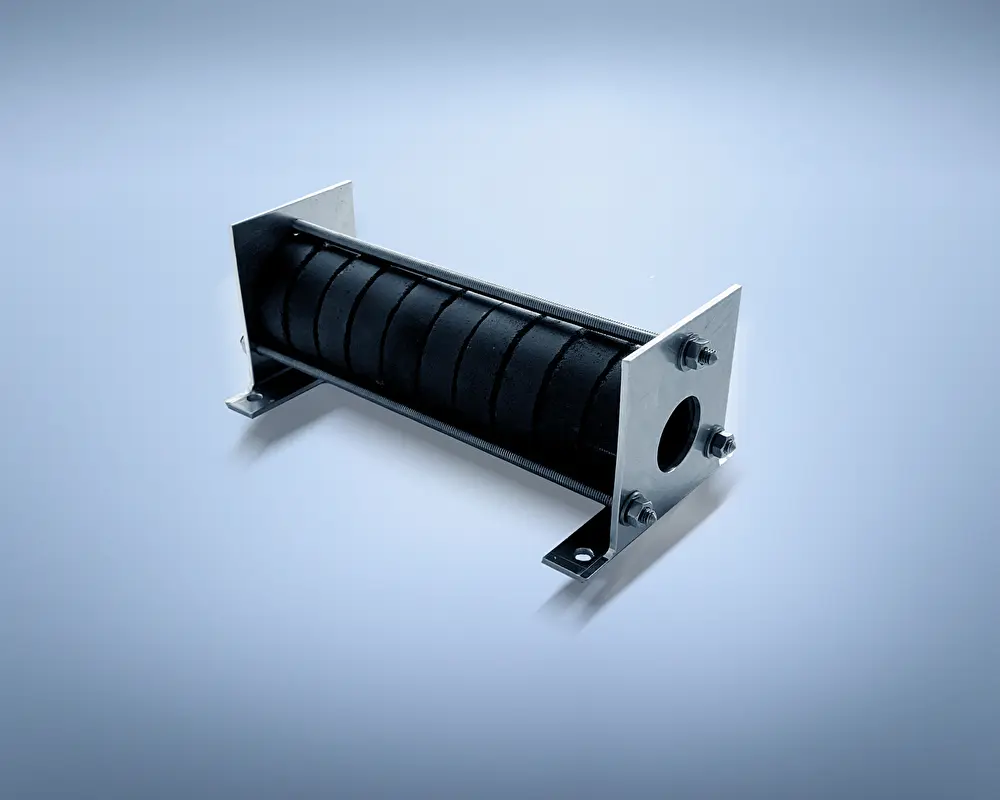

    HF Filters
